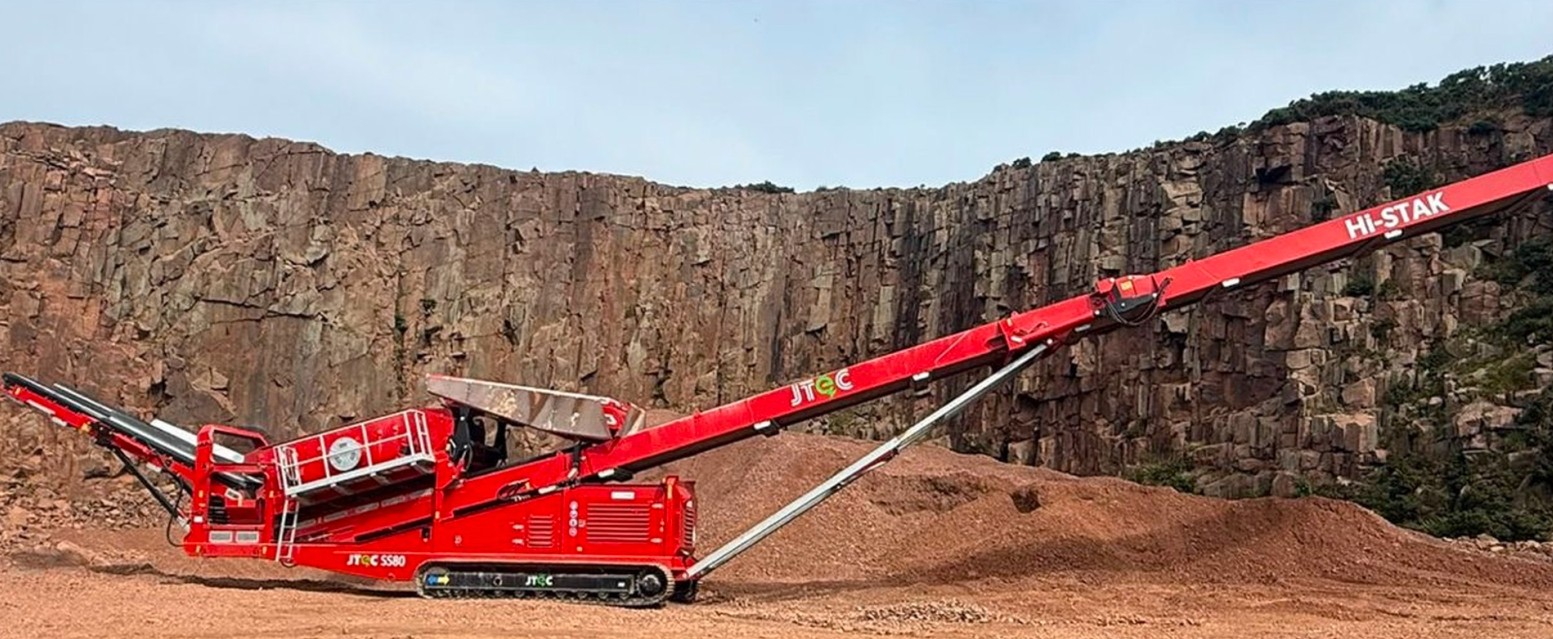

JTEC SS80 (12' × 4')– Hi-Stak Mobile Tracked Screener

Heavy-Duty Double-Deck Screening & Stockpiling Plant | Made in the UK

The JTEC SS80 is a heavy-duty tracked screening plant designed for efficient material screening and high-capacity stockpiling in quarrying, aggregate production, construction, and recycling applications.

Manufactured in the United Kingdom, the SS80 features a 12' × 4' double-deck screenbox and an extended Hi-Stak rear conveyor capable of stockpiling materials up to 34' 5" (10.48 m) high, reducing loader movements and material handling costs.

Powered by a 104 HP (78 kW) diesel engine, the SS80 combines screening and stockpiling in one mobile unit.

Main Specifications

SpecificationDetailsEquipment TypeMobile Tracked ScreenerScreening SystemDouble DeckTop Screening Deck3.658 × 1.219 m (12' × 4')Bottom Screening Deck3.658 × 1.219 m (12' × 4')Engine Power104 HP (78 kW) DieselMaximum Rear Stockpile Height10.48 m (34' 5")Side / Front Stockpile Height4.131 m (13' 7")Operating Weight31,000 kg (68,343 lbs)Transport Length21.14 m (69' 4")Transport Width3.094 m (10' 2")Transport Height3.64 m (11' 11")

Key Features

• Heavy-duty double-deck screening system
• High-capacity Hi-Stak rear stockpiling conveyor
• Stockpile heights up to 34' 5" (10.48 m)
• 48 ft² (4.46 m²) screening area per deck
• Side and front discharge conveyors
• 104 HP diesel engine
• Heavy-duty tracked undercarriage
• Integrated screening and stockpiling operation
